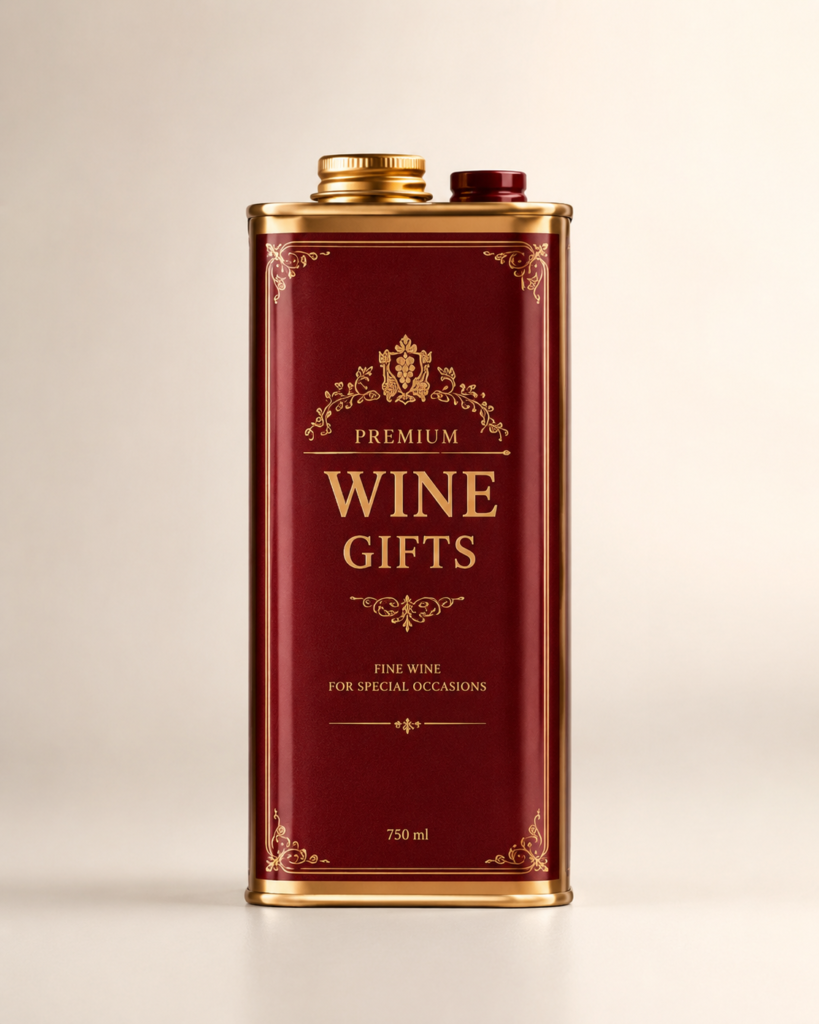

F-Style Tin Cans
Custom Liquor & Spirits Tin Packaging with HDPE Inner Liner
Tinplate outer can with custom HDPE inner liner or bottle provides a premium packaging solution for liquor, whisky, vodka, gin, wine gifts and other spirits. The outer F-style tinplate can offers a durable, printable and embossable metal surface, while the inner HDPE liner separates liquid from direct metal contact.
Why Choose Tin Cans with HDPE Inner Liner?
Premium metal appearance
Premium shelf appeal compared with traditional glass bottles, Versatile custom printing and finish options including CMYK/Pantone printing, embossing, matte, glossy, and special effects

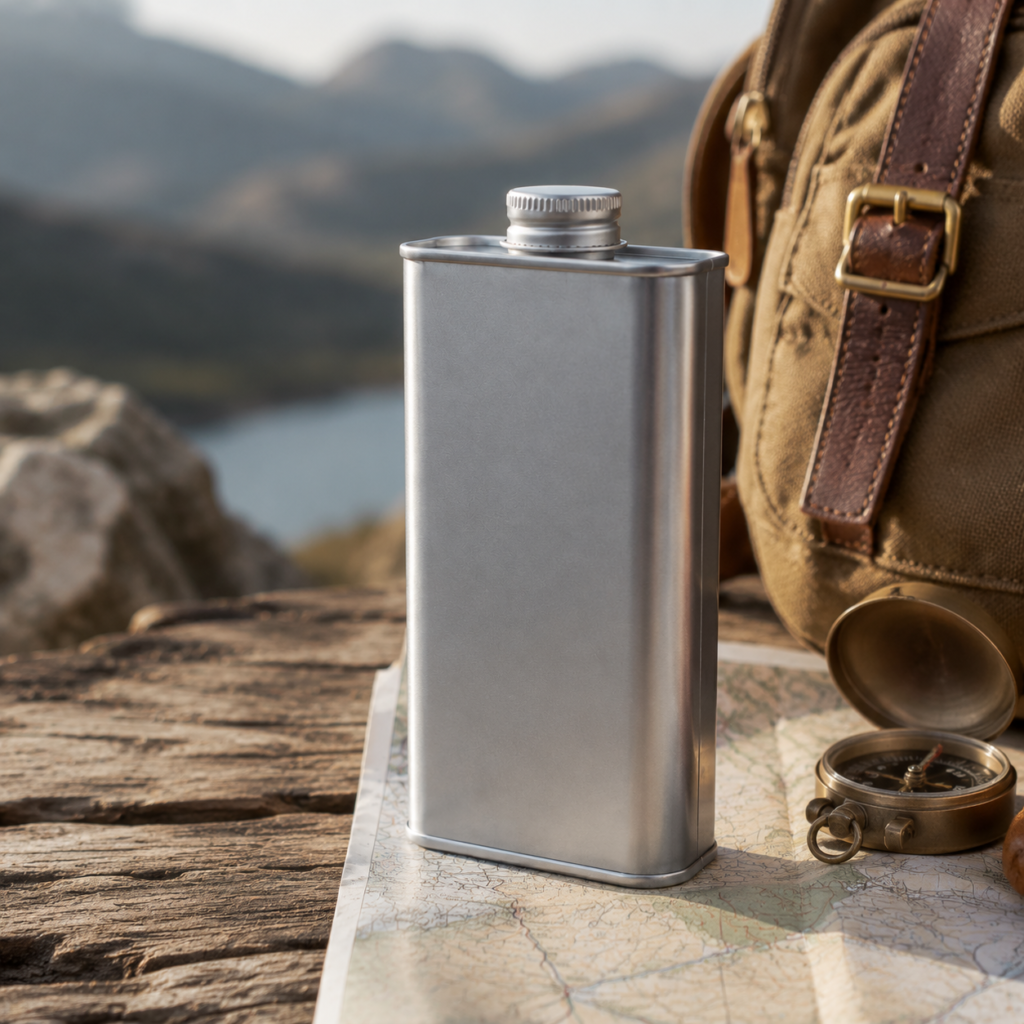

Durable and travel-friendly
Leak-resistant design suitable for transportation and retail display: Food-grade HDPE inner liner for direct contact with alcoholic beverages, Excellent barrier protection against contamination and external impact

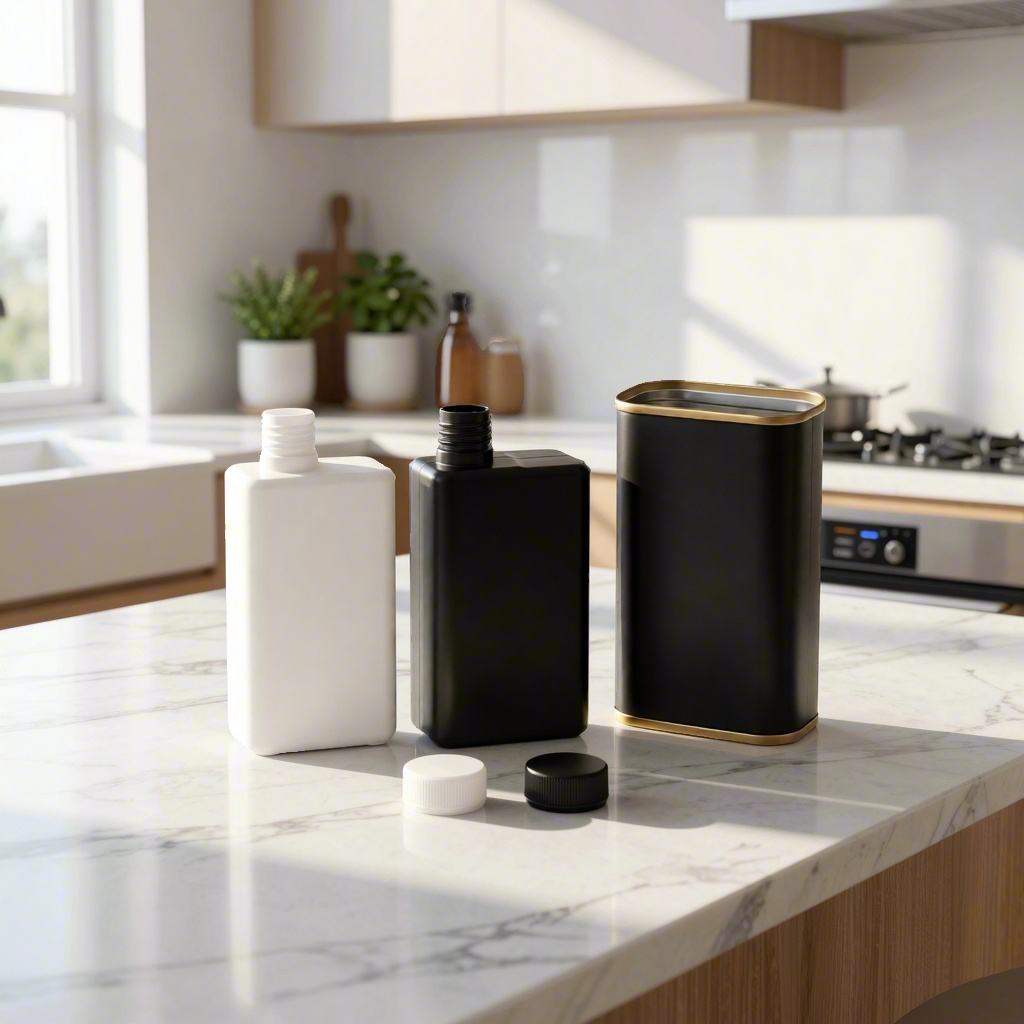

HDPE Inner Liner/Bottle
Custom HDPE liner or bottle in black or white.
Helps separate liquid from metal directly.
Suitable for different types of spirits.

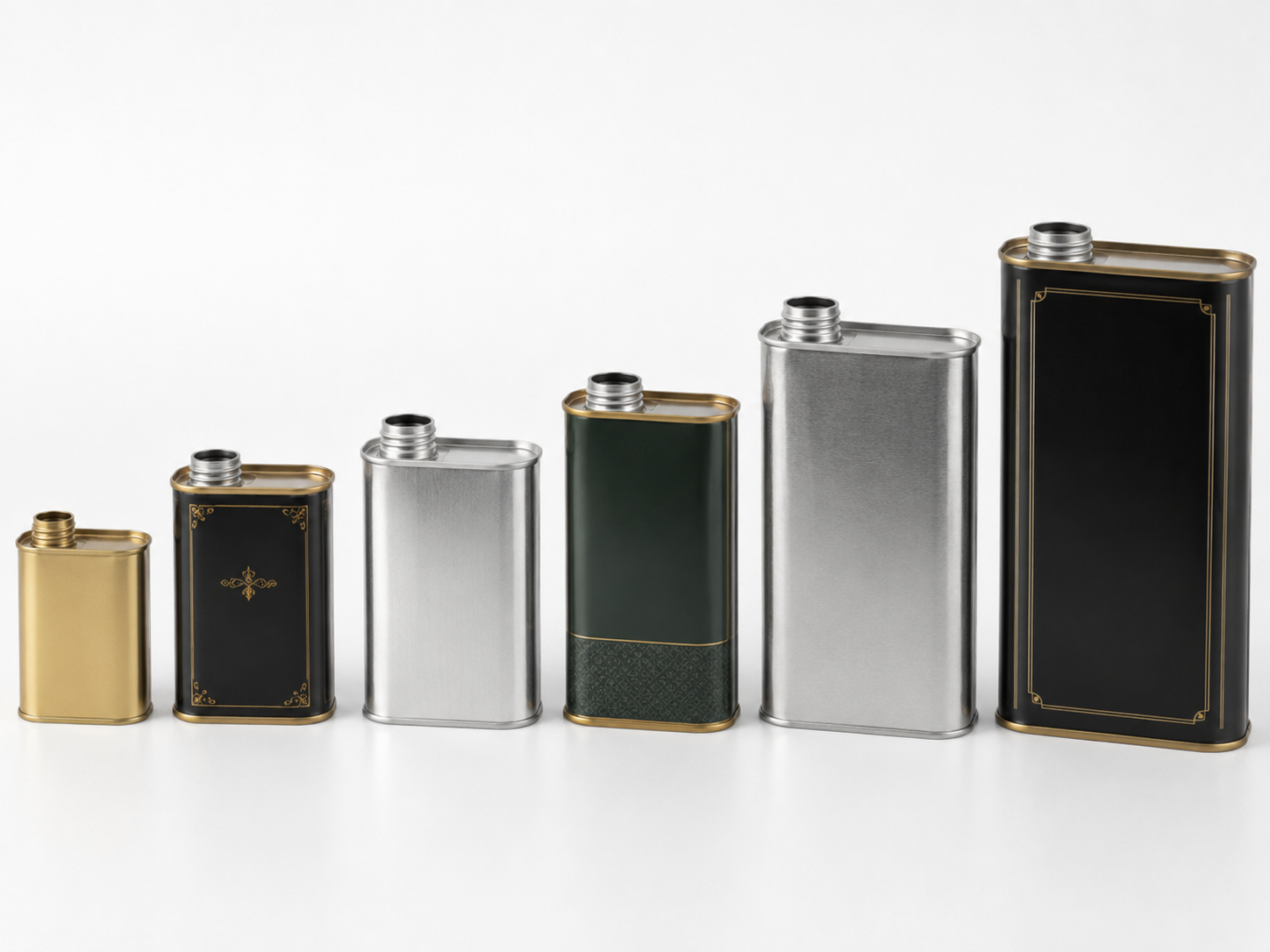

Available F-style Liquor Tin Can Molds
Capacity | Mold NO. | Dimension |
|---|---|---|
350ml | TS7120 | 83x38x162mmH |
500ml | TS7107 | 102x47x150mmH |
700ml | TS7107C | 102x47x195mmH |
700ml | TS7101D | 115x60x147mmH |
1000ml | TS7105 | 96x70x200mmH |
2000ml | TS7116 | 140x90x200mmH |
Existing molds help reduce tooling cost and shorten sample development time. Custom tinplate sizes and HDPE liner dimensions are also available for private-label liquor packaging projects.
Liquor Tin Can Wholesale and Customization
Our liquor tin cans feature a food-grade HDPE liner inside the metal container, providing an additional protective barrier between the beverage and tinplate. This design helps improve packaging performance, prevent leakage, and maintain product quality during storage and transportation.
Customized Tins Size
Tinspkg has more than 2000 sets of various molds. You can choose our available molds from size and shape to customize your project which shall save your time and mold cost.
We can produce 75 ml -1 liter oil can in F-type and round shapes. These tin cans can be customized with printing as per your design and with various lid types.
We have more than 110 sets of molds for oil cans in rectangular and round shapes. All of our oil tin can heights could be modified to hold different volumes. All of oil tin cansare made from 0.23-0.28 mm thickness premium tinplate with 2.8g/m² tin coating to make sure each tin high quality standard.
Our Specification
ITEM | Capacity | SIZE | THICKNESS | LID TYPE | TIN SHAPE | MATERIAL |
|---|---|---|---|---|---|---|
TS7103 | 1 Litre | 106x55xH228mm | 0.28mm | Plastic Cap | F-Type | Tinplate |
TS7105 | 1 Litre | 96x70xH190mm | 0.28mm | Plastic Cap | F-Type | Tinplate |
TS7101B | 1 Litre | 116x60xH175mm | 0.28mm | Screw top/ pump sprayer | F-Type | Tinplate |
TS7302 | 250ml | D75xH143mm | 0.28mm | Plastic Cap | Cylinder | Tinplate |
TS7301 | 250ml | D67xH113mm | 0.28mm | Plastic Cap | Cylinder | Tinplate |
TS7108B | 250ml | 77x55xH110mm | 0.28mm | Plastic Cap | F-Type | Tinplate |
TS7108 | 250ml | 77x54xH110mm | 0.28mm | pump sprayer | Cylinder | Tinplate |
TS7107 | 380ml | 102x46xH120mm | 0.28mm | Plastic Cap | F-Type | Tinplate |
TS7106 | 500ml | 100x62xH120mm | 0.28mm | Plastic Cap | F-Type | Tinplate |
TS7303 | 520ml | D65xH163mm | 0.28mm | Plastic Cap | Cylinder | Tinplate |

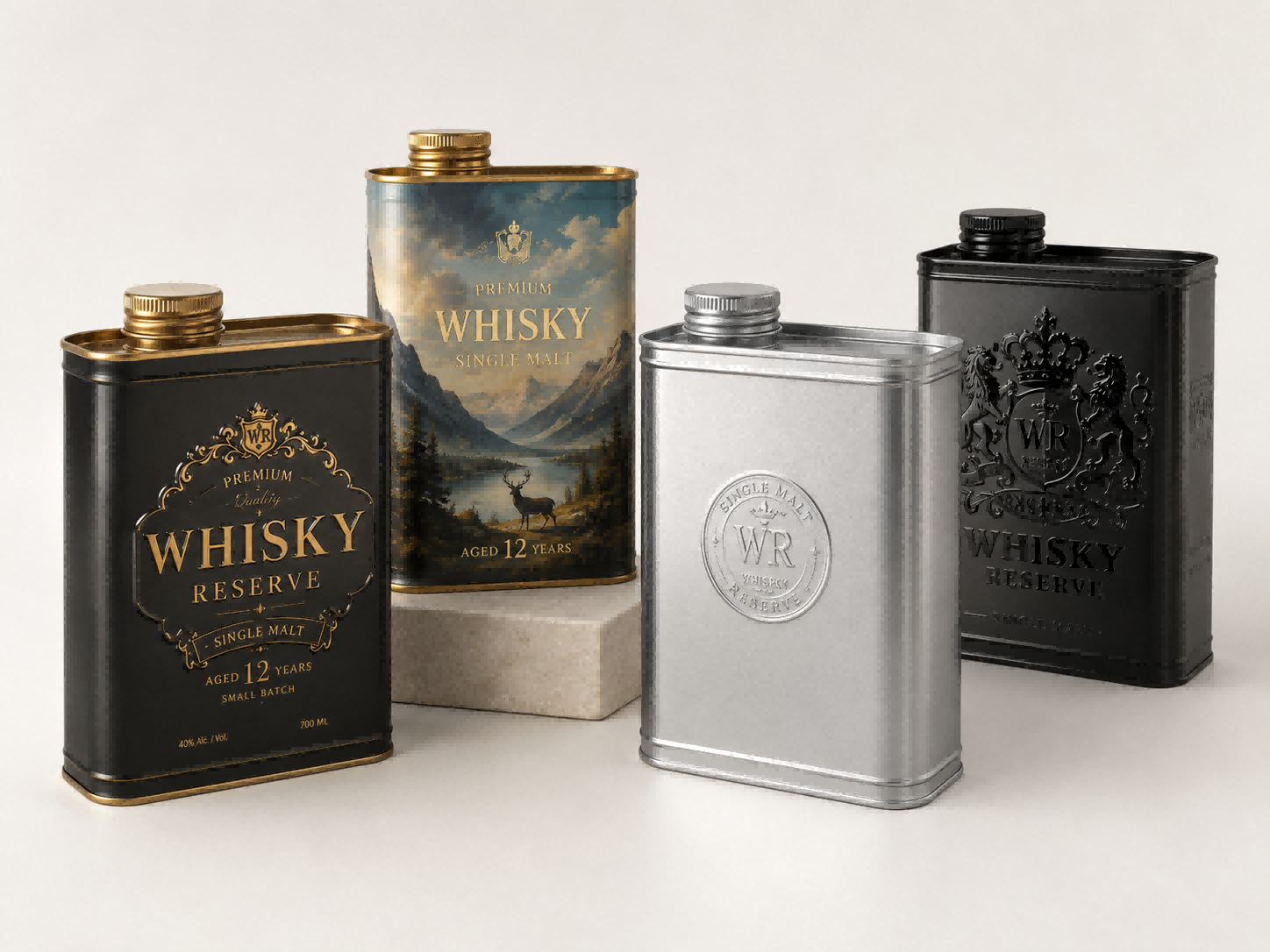

Pantone/CMYK Printing
You can customize tin box and tinplate products’ color according to the Pantone book as well as create designs using CMYK colors. The tinplate original color is silver. We can print any color / any pattern without limitation; full colorful printing, solid Pantone /CMYK color, metallic Pantone /CMYK color and get them by glossy(shiny) finish, matte finish or combine matte with glossy finish to meet your diversity needs. Tinspkg proceed tinplate sheets offset printing by advanced printing machines Japan, PRIMEX-P453/453. It helps to realize high-quality and stable printing quality.
Inner coating – Epoxy-Phenolic Resin (gold lacquer) and clear lacquer are the most common for edible oil cans, with strong resistance to oil and fats, preventing corrosion and flavor migration.

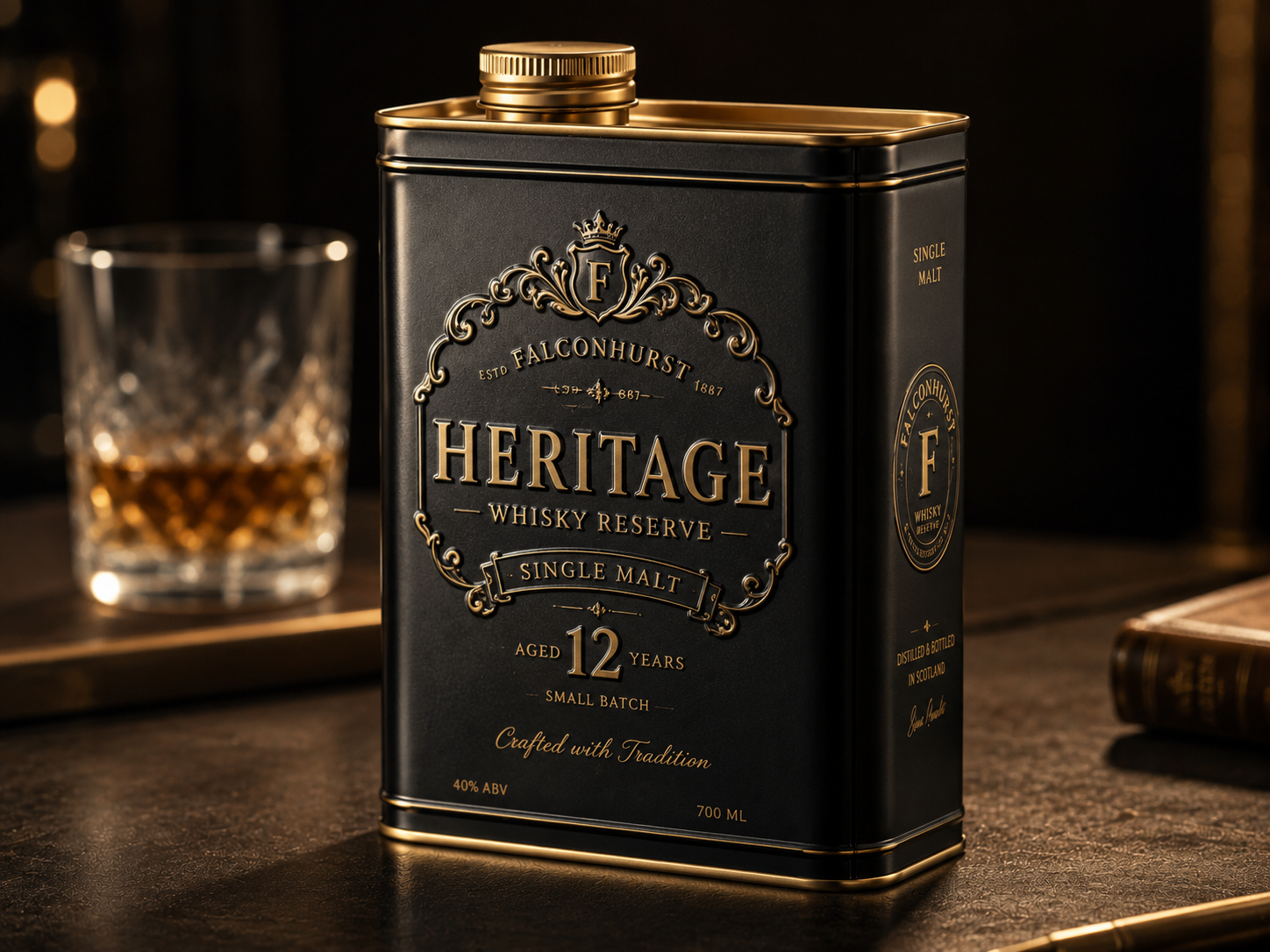

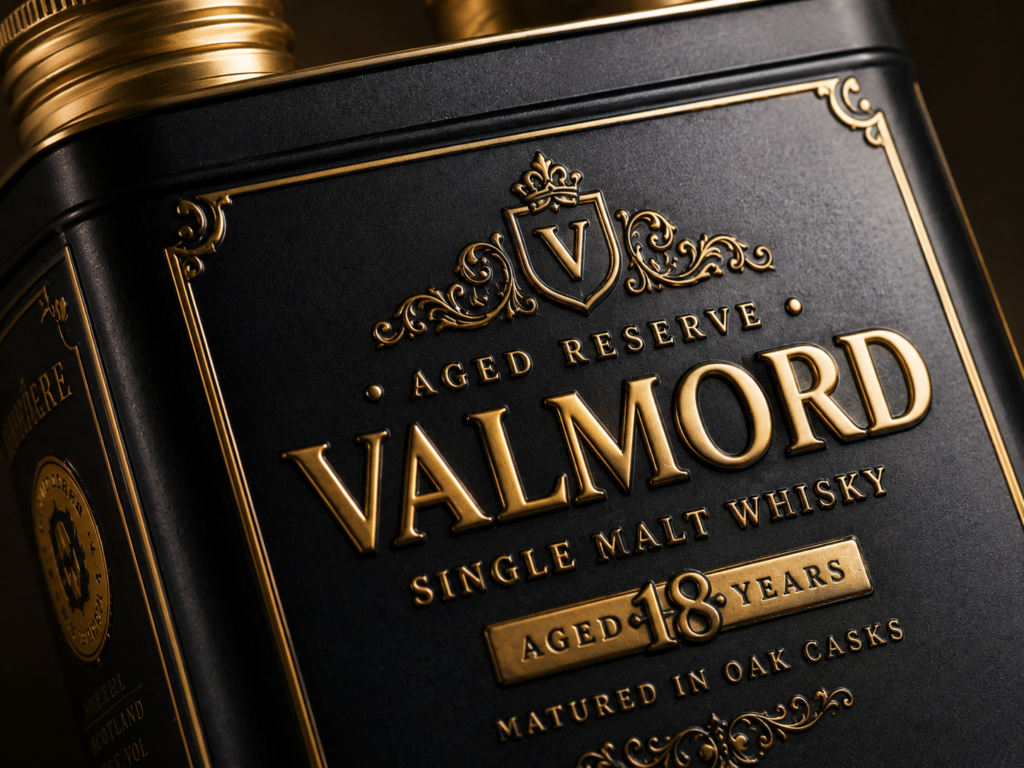

Logo Embossing & Debossing
Dongguan Tinspkg Co.,Ltd helps companies create custom logo or pattern with embossed or debossed effect on tins to make your brand stand out. Embossing adds another level of texture and dimension to the box, giving it a truly luxurious feel. We can make flat embossing, 3D relief, debossing to elevate brand.
3D relief
3D relief adds phycial dimension, allowing custtomers to see and feel the embossed patterns 5-10mm height (logos, intricate designs, or textures on the surface of tinplate. Can be combined with printing designs and finishes for unique branding.
Flat embossing
Also called level embossing that creates a smooth, raised effect on tinplate surfaces without sharp edges or deep contours. It works seeamlessly with printing and coatings. Flat embossing produces a gentle elevation, maintaining a sleek, modern look while adding tactile inerest. Raised height would be 2-3mm generally.
Debossing
Debossing on tinplate to press a design into the tinplate surface, creating a recessed(indented) 3D effect. Unlike embossing, debossing adds subtle depth(2-3mm generally) and sophistication, often used for logos, text or intricate patterns.
Accessories
Tinspkg’s oil tin cans with various types of closure for option. You can choose plastic pump sprayer, plastic flip cap, plastic screw cap with plug interior, plastic spout cap and other customized closure types. All these plastic caps are made from food-grade plastic materials that are safe for contact with edible oil, resistant to leakage, and strong enough to withstand handling. They are mainly made from:
- HDPE (High-Density Polyethylene): strong, rigid and resistant to oil penetration; FDA/EU approved for food contact.
- PP (Polypropylene): good chemical and heat resistance; often used for screw caps and spouts that provides a tight seal with flexibility
flip cap
Plastic flip-top cap makes edible oil tin can easier to open, pour, store and re-close while maintaining freshness and reducing leakage. It allows consumers to open and close the can easily without needing a separate opener, prevents oil from spilling or dripping compared to a fully open tin mouth. It comes with an inner seal or tight snap fit, helping to avoid oil leakage during transport and storage. It’s preferred design for household and 500ml or less oil tin can. The spout inside the flip cap provides a controlled stream of oil, making it easier to pour the right amount for cooking without waste.
plastic pump sprayer
A plastic pump sprayer on edible oil tins make oil usage more precise, cleaner, healthier, turning the tin into a user-friendly, portion-control dispenser. It helps apply just the right amount for health and diet benefits, reducing waste. It is convenient by one-hand operation, easy to spray without lifting or tilting a heavy tin can, and reduce direct contact with oil inside the tin. It ensures oil is spread evenly over pans, grills, baking trays, or food that improves cooking results. Plastic pump sprayer oil tin can is suitable for home kitchens, restaurants, and catering services.
plastic spout cap
Plastic spout cap (pull-out spout closure) makes it easy to pour oil without removing the entire lid and the spout is hidden inside the closure, can be pulled out when needed. It’s reclosable and airtight. Many pull-out spout closures have a breakable ring or seal, ensuring the product hasn’t been opened before purchase.
It has excellent air tightness and workable for any size oil tin can from 0.5L to 5L. And this kind of cap can be applied by automatic capping machines on the tin production lines.
screw cap with plug interior
Custom Design Printing Quality Control Inspection
We strictly follow custom proof or pantone color on printing process to make sure your brand consistency.
The tinplate material Tinspkg use – All electrolytic tinplate coated steel sheet (including base plate) with SGS reports(REACH, RoHS)
Printing ink -JIANGMEN TOYO INK CO., LTD with EN71-3, PFAS, REACH SVHC REPORTS
Perfect for Various Spirits

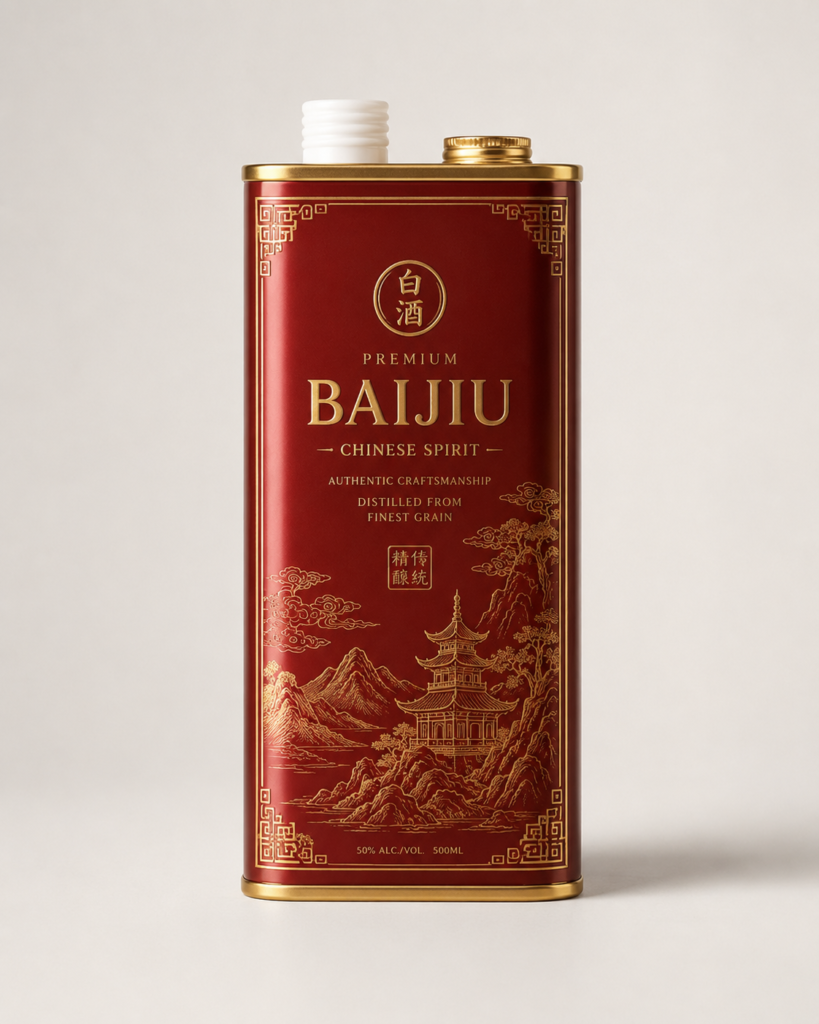

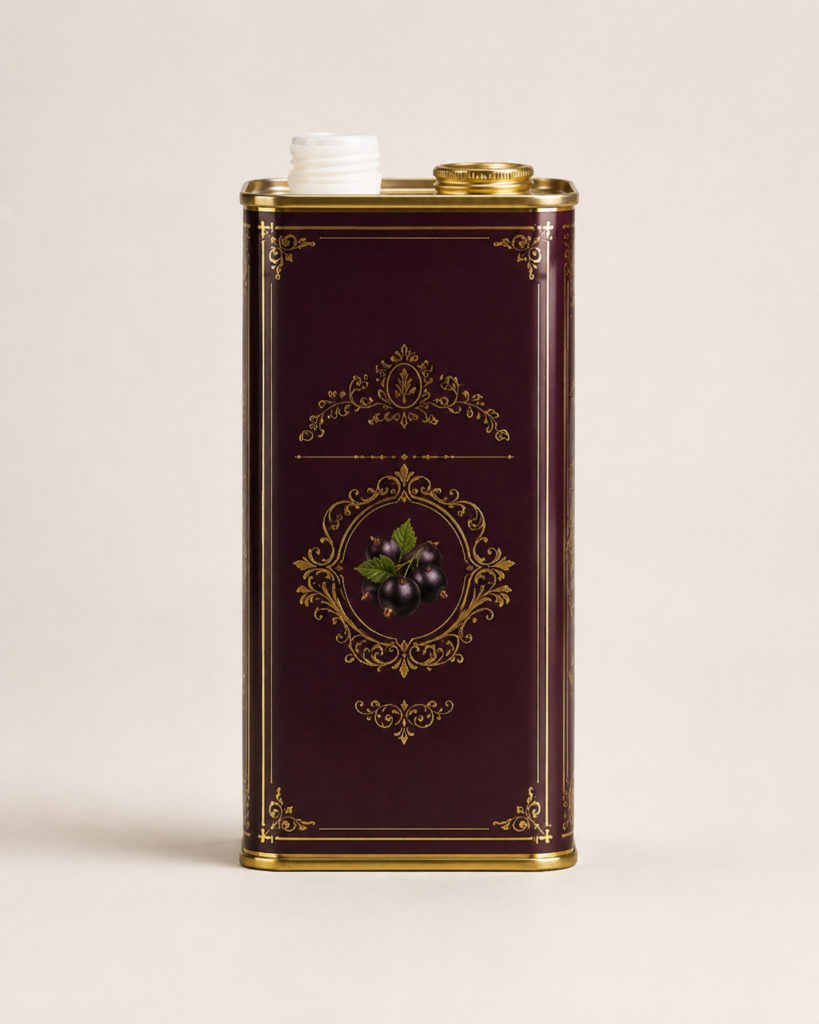

BAIJIU- Liqueur
- Wine

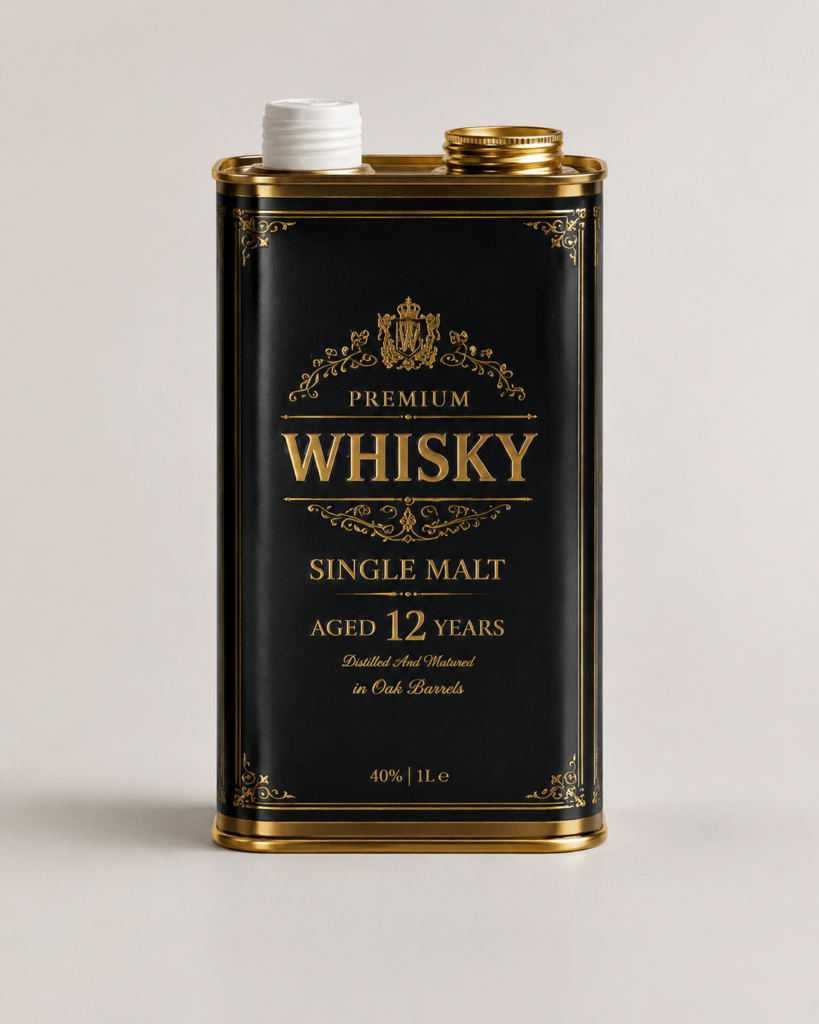

- Whiskey

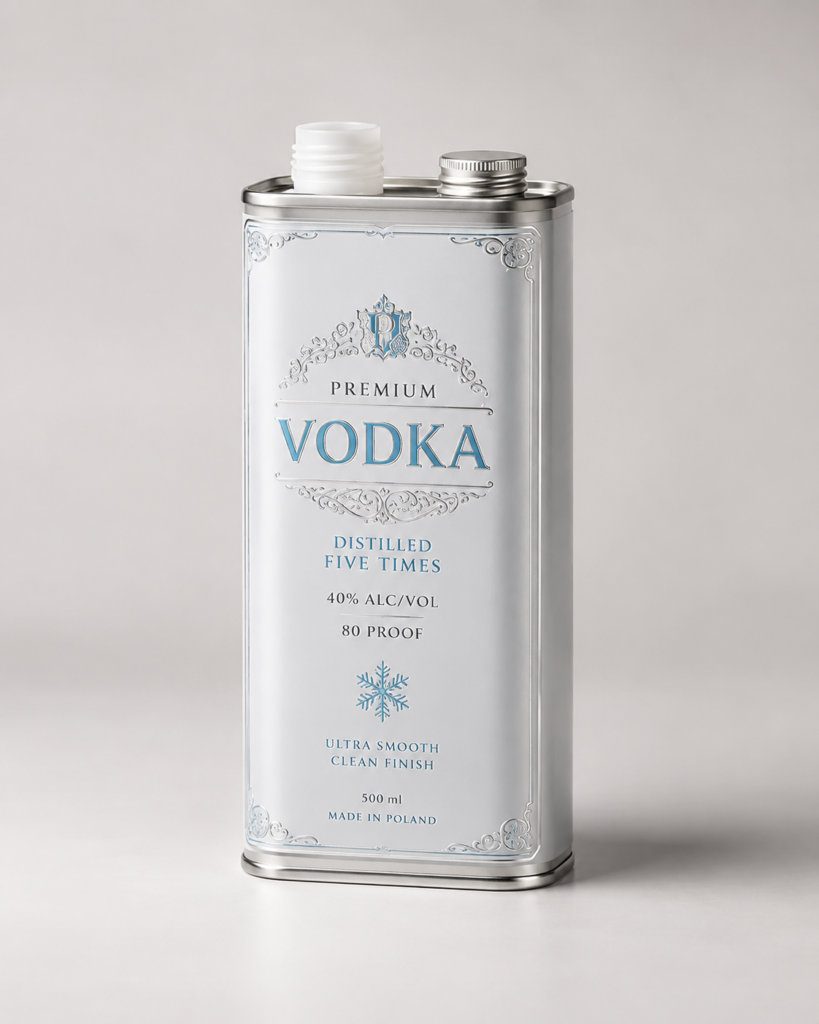

- Vodka

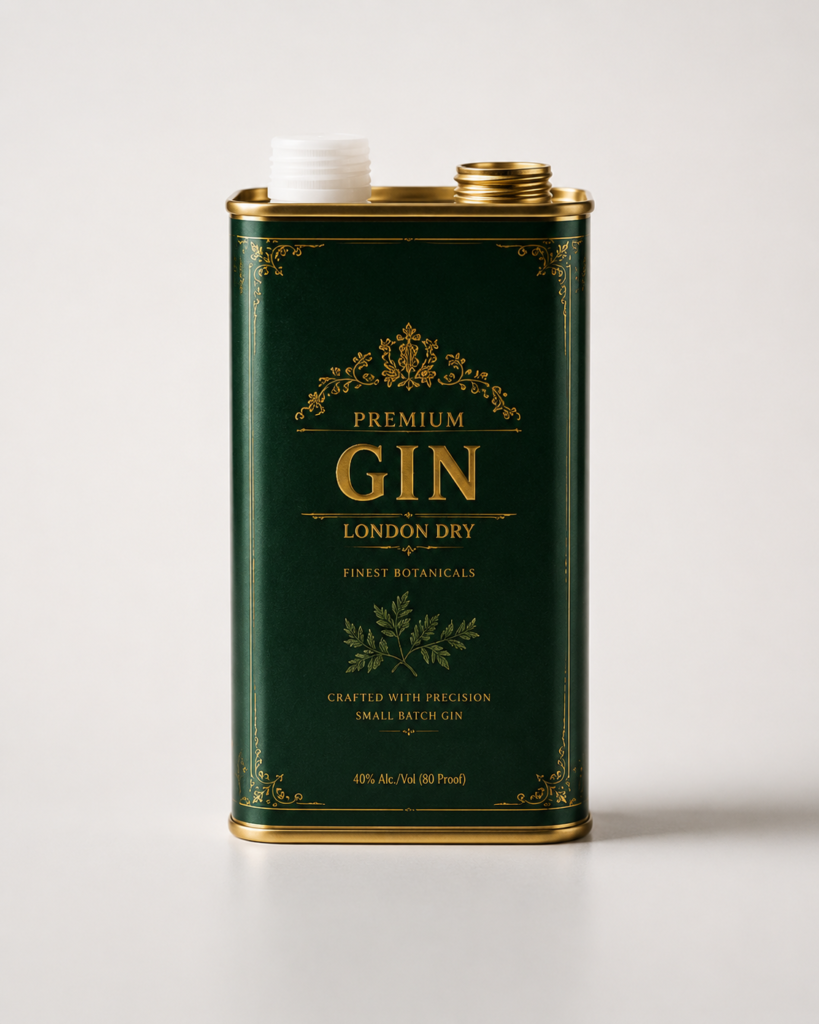

- Gin
The Process of Custom Liquor Can
Before the customization of your alcohol tin containers with Tinspkg, please kindly provide some essential informations below in order to provide our valuable and effecient feedback for you.
We shall recommend the most suitable tin can structure, HDPE liner design, and sealing solution based on your product requirements.
If this is your first time customizing metal tin packaging and no much experience on size or shapes, please contact our professional team and we shall provide you one-stop and workable solutions
Based on existing available mold, for custom project, we shall provide below suggestion and solutions:
- we would provide die line of tin box to customer in AI or PDF format. Client’s designer finish artwork and put them into die line and shared to us.
- We shall double check the artwork if words , pattern are correctly positioned.
- After that, we would check with client to confirm the printing effect -if need white base or partial metallic , full metallic printing, any spot color, glossy or matte finish request and suggestions
- Before proof, we can provide 3D mock up with artwork for quick check and approval
Above is based on existing available mold. If you’d like to customize a new mold, we shall provide below suggestions and solutions:
- Making 3D mock up as per size specification or your product information and structure details for confirmation
- Making 3D mock up with client’s artwork for you to have a clear presentation
- After above approval, we would proceed plastic proof. Gerenerally it takes 3-7days to complete
- Once plastic proof ready , we shall ship to you. And you can test size and check the structure
- If plastic proof confirmed, we would proceed mold customization. It would takes about 15-25days which mainly depends on the size and structure of tin box
The raw materials used for custom tinplate cans are usually tinplate, sandy tinplate, galvanized iron. Tin plate and sandy tin plate are with tin layer that is non-toxic and tasteless, with a bright surface. They are meeting food grade, eco-friendly and recyclable requirements which are perfect for food and liquid storage.
A tin layer on the surface of tinplate cans, which can effectively prevent corrosion and protect the quality of food.
Good quality tinplate materials play an important role on the following printing and production process.
- Tinplate material: ETP tinplate (T2.8 / TS28)
- Tin plate thickness: 0.23mm, 0.25mm, 0.28mm, 0.3mm
- Aluminum plate thickness: 0.28mm(regular)
To make custom printed tin product samples take 7-12days generally, and we need to proceed custom tin plate printing by offset printing method first then stamping into shapes and assembly. After sample ready, we would provide pictures from different side for you to check. Then ship out to your company by express shipping and shipping time one week.
If you have any special request for custom sample, we would check all possibilities to meet your demand. In addition, Tinspkg can promise the same quality standard for both sample and bulk cargo.
After sample approval and order placed, we shall proceed mass production as per following procedures:
- Firstly Print tinplate sheet with customer’s printing artwork and take the proof for color check
- Cutting tinplate into pieces
- Fix, modify and test mold
- Shaping by stamping machines and assemble
After custom tin sample approval and place order, we shall proceed printing tinplate for order.
Printing tinplate sheet MOQ1500 pieces( tinplate sheet size varies but basically around 960*1080mm).
For small quantity orders, we need to set up different orders together on the same template to print in order to cut down client’s cost
Most tin can supplier use two-color printing machines and unable for finish CMYK process at same time which may cause some color difference and tin plate material loss. Tinspkg use Fuji 4-color printing marchines and one line we can finish all CMYK colors to make sure printing quality.
After color printing process finished, there is an essential step- coating that is greatly helpful for ink adhesion and visual quality. Good quality printing attract more attention for your brand.
Tinplate can be coated differently as per drawings; partly or completely; matte or glossy
Before printed tinplate sheets cutting, QC person need to check materials surface correct.
Cutting process, we need to cut tinplate into correct size and without scratches to make sure the following production go smoothly
Shearing machines cut large-sized tinplate sheets into small sizes. A tin box is constructed by tinplate lid, tinplate body or tinplate bottom. If there are some errors in the size of tin sheet, it would affect tin can size and artwork position and lid tightness etc. Therefore, cutting correctly is the basis of tin can production.
The thickness of metal tin plate should be less than 0.3mm cutted by shearing machine, or it would affect cutting quality and cause shearing machine damage. Tin plate would have irregular burrs that would affect production as well.
Tinspkg use a fully automatic shearing machine to complet this process and an engineer keep an eye on the shearing machine status.
One tin box completed requests many different processing molds. Therefore, fixing and modify each stamping machines with every mold and test is very important. These make sure good quality tin box with correct size, embossing accurateness, proper tightness, screw lid works, no scratches and no quality issues.
Quality represents everything of the company. To find a reliable manufacturer, you should know something about tin production quality control.
From the beginning of tinplate printing to cutting and mass production, every step we have rich experienced staff to check and control.
Quality Control
We must focus on and avoid below main quality issues happened during production:
Scratch
Deformation
Dirty Mark
Embossing Deviation
Poor Painting
Rust
PACKING & DELIVERY
Each tin can packing in PE bag to avoid dust and scratching, packing in carton boxes or pallet
popular Liquor Tins Bulk
Tinspkg provides bulk liquor tin packaging solutions for global spirits brands, beverage companies, gift retailers, and distributors. We specialize in manufacturing custom liquor tins, metal cans with HDPE inner liners, and premium spirits packaging for whisky, vodka, gin, rum, wine gifts, and other alcoholic beverages.
With professional tinplate manufacturing capabilities, we support OEM and ODM bulk orders, including custom sizes, shapes, printing designs, and finishing options. From concept development and mold design to mass production and delivery, we provide a complete packaging solution to help brands create distinctive and premium alcohol packaging.
Our Product Model
What is Metal tin can with HDPE liner for Alcohol?
A metal tin can for alcohol is a specially designed metal packaging container used for storing and presenting alcoholic beverages such as whisky, vodka, gin, rum, wine, and other spirits. It is typically made from high-quality ETP tinplate and can be combined with a food-grade HDPE inner liner to provide an additional protective barrier between the metal container and the beverage.
What is HDPE lined liquor metal cans made of?
A metal tin can with an HDPE liner for alcohol is a premium packaging solution that combines a durable tinplate outer container with a food-grade HDPE (High-Density Polyethylene) inner liner. This structure is designed for packaging alcoholic beverages such as whisky, vodka, gin, rum, wine gifts, and other spirits.
The tinplate body provides strength, durability, and a premium appearance, while the HDPE inner liner acts as a protective barrier between the alcohol and the metal surface, helping improve product compatibility, sealing performance, and storage reliability.
Why you should use HDPE Lined Metal Tin Cans for Alcohol Packaging?
A Safer Solution for Different Spirits
When packaging alcoholic beverages, one of the main challenges for brands is ensuring long-term compatibility between the alcohol and the metal container.
Traditional tinplate cans without an inner barrier may have limitations when used with different types of alcoholic products, especially beverages with higher alcohol concentration, acidity, or special ingredients. Direct contact between the liquor and metal surface may affect packaging stability over time.
To solve this challenge, Tinspkg provides metal tin cans with food-grade HDPE inner liners, creating an additional protective barrier between the alcohol and the tinplate body.
- Improved product compatibility
- Better protection during storage
- Premium metal appearance with functional protection
- Customized solution for different alcohol brands
Can the HDPE inner liner size be customized?
Yes. Tinspkg provides customized HDPE inner liner solutions for metal liquor cans. The HDPE liner can be designed to match different tin can sizes, shapes, capacities, and filling requirements.
The liner dimensions can be customized based on:
- Tin can diameter and height
- Filling volume (ml)
- Type of alcohol product
- Lid and sealing structure
- Filling and production requirements
What colors are available for the HDPE liner?
The HDPE inner liner color can be customized according to your brand requirements and packaging design. Common options include natural white, translucent, and black HDPE liners.
Available HDPE Liner Colors
- Natural / White HDPE – the most commonly used option, providing a clean and professional appearance.
- Translucent HDPE – allows partial visibility of the inner surface and is suitable for general packaging applications.
- Black HDPE – provides a premium appearance and helps block light exposure for certain products.
For special brand requirements, custom colors may also be available depending on the order quantity and production requirements.
Is the tin can leak proof?
Yes, our HDPE lined metal tin cans are designed with a secure sealing structure to provide reliable leak resistance during storage and transportation.
The combination of a precision-fitted HDPE inner liner and properly designed lid structure helps create an effective barrier to reduce the risk of leakage and protect the packaged alcohol product.
Can I print or emboss my own logo?
Yes. Tinspkg provides full customization options for liquor tin cans, allowing brands to add their own logo, artwork, and brand elements to create unique and premium alcohol packaging. Custom printing allows your brand logo, product information, and design artwork to be displayed clearly on the metal surface.
Your logo can be customized with:
- Embossed logo (raised design) for a premium 3D effect
- Debossed logo (pressed-in design) for a subtle luxury appearance
From concept design to mass production, we help alcohol brands create distinctive metal packaging that strengthens brand recognition and shelf appeal.
Do you have existing molds?
Yes. Tinspkg currently has 6 existing liquor tin can molds with matching HDPE inner bottles, providing a ready-to-use packaging solution for spirits brands.
These existing designs allow customers to:
- Reduce tooling costs
- Shorten product development time
- Launch products faster
- Test the market with a more cost-effective packaging solution
Each tin can design has a compatible food-grade HDPE inner bottle, which provides an additional barrier between the alcohol and the metal container, helping improve packaging stability and product protection.
Available Customization Options
Even with existing molds, brands can still customize their packaging through:
- Custom logo printing
- Embossing and debossing
- Matte, glossy, or special finishes
- Customized lid designs
- Brand-specific artwork and colors
For brands requiring a unique appearance or special capacity, Tinspkg can also support new mold development and customized HDPE liner solutions.
Tin Container Solutions To Your Industry
TINSPKG is a one-stop custom metal tin product supplier. We have produced thousands of types of tin container in different colors and capacities. We can provide customers with the best price and quality tin container.
- Area: 6000 Square Meters
- R&D engineers: 3 Staffs
- Tin Molds: 3000+ Sets
- Production Worker: 60+ Staffs
- QC Team: 7 Staffs
- Production Capacity: 2,000,000 PCS Per Month
- Machines：
- 110 Stamping Machines
- 5 Automatic Cutting Machines
- 6 Automatic Production Line
- 3 Packing Line
Please note: The right lists are only part of our Tin container. For more detailed types and specifications, Please Check Our Catalog or contact us.
